LabVIEW中其實也提供的一些文字撰寫方式的語法,
如Mathscript Node, Formula Node,
其中Formula Node的語法很像C,
只要在Formula Node的框邊上定義輸出(output)與輸入(output)
在框內寫下類似C的語法即可,

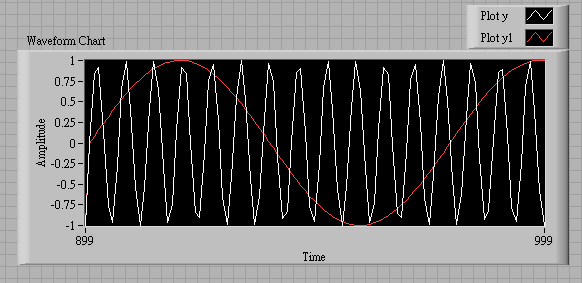

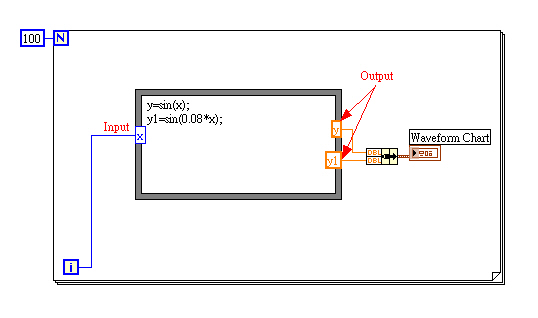

我寫了一個程式, 內容如下 :
相信這樣應該比較明瞭了ㄅ
Formula Node想關的語法資料:
Performing Conditional Statements Using Formula Nodes
Precedence of Operators in Formula Nodes and Expression Nodes
Formula Node and Expression Node Functions
如Mathscript Node, Formula Node,
其中Formula Node的語法很像C,
只要在Formula Node的框邊上定義輸出(output)與輸入(output)
在框內寫下類似C的語法即可,
我寫了一個程式, 內容如下 :
相信這樣應該比較明瞭了ㄅ
Formula Node想關的語法資料:
Performing Conditional Statements Using Formula Nodes
if (y==x && a[2][3]<a[0][1]) {
int32 temp;
temp = a[2][3];
a[2][3] = y;
y=temp;
}
else
x=y;
Performing Do Loops Using Formula Nodesdo {
int32 temp;
temp = --a[2]+y;
y=y-1;
}
while (y!=x && a[2]>=a[0])
Performing For Loops Using Formula Nodesfor (y=5; y<x; y*=2) {
int32 temp;
temp = --a[2]+y;
x-=temp;
}
Performing Switch Statements in Formula Nodesswitch(month){
case 2: days = evenyear? 29: 28; break;
case 4:case 6:case9: days = 30; break;
default: days = 31; break;
}
Performing While Loops Using Formula Nodeswhile (y!=x && a[2]>=a[0]) {
int32 temp;
temp = --a[2]+y;
y=y-1;
}
Precedence of Operators in Formula Nodes and Expression Nodes
** | exponentiation |
+, -, !, ~, ++, and –– | unary plus, unary negation, logical not, bit complement, pre- and post-increment, pre- and post-decrement ++ and –– are not available in Expression Nodes. |
*, /, % | multiplication, division, modulus (remainder) |
+ and – | addition and subtraction |
>> and << | arithmetic shift right and shift left |
>, <, >=, and <= | greater, less, greater or equal, and less or equal |
!= and == | inequality and equality |
& | bit and |
^ | bit exclusive or |
| | bit or |
&& | logical and |
|| | logical or |
? : | conditional evaluation |
= op= | assignment, shortcut operate and assign op can be +, –, *, /, >>, <<, &, ^, |, %, or **. = op= is not available in Expression Nodes. |
Formula Node and Expression Node Functions
Function | Corresponding LabVIEW Function | Description |
---|---|---|
abs(x) | Absolute Value | Returns the absolute value of x. |
acos(x) | Inverse Cosine | Computes the inverse cosine of x in radians. |
acosh(x) | Inverse Hyperbolic Cosine | Computes the inverse hyperbolic cosine of x. |
asin(x) | Inverse Sine | Computes the inverse sine of x in radians. |
asinh(x) | Inverse Hyperbolic Sine | Computes the inverse hyperbolic sine of x. |
atan(x) | Inverse Tangent | Computes the inverse tangent of x in radians. |
atan2(y,x) | Inverse Tangent (2 Input) | Computes the arctangent of y/x in radians. |
atanh(x) | Inverse Hyperbolic Tangent | Computes the inverse hyperbolic tangent of x. |
ceil(x) | Round To +Infinity | Rounds x to the next higher integer (smallest integer > x). |
ci(x) | Cosine Integral | Evaluates the cosine integral for any real nonnegative number x. |
cos(x) | Cosine | Computes the cosine of x, where x is in radians. |
cosh(x) | Hyperbolic Cosine | Computes the hyperbolic cosine of x. |
cot(x) | Cotangent | Computes the cotangent of x (1/tan(x)), where x is in radians. |
csc(x) | Cosecant | Computes the cosecant of x (1/sin(x)), where x is in radians. |
exp(x) | Exponential | Computes the value of e raised to the x power. |
expm1(x) | Exponential (Arg) – 1 | Computes one less than the value of e raised to the x power ((e^x) – 1). |
floor(x) | Round To –Infinity | Truncates x to the next lower integer (largest integer <= x). |
getexp(x) | Mantissa & Exponent | Returns the exponent of x. |
gamma(x) | Gamma | Evaluates the gamma function or incomplete gamma function for x. |
getman(x) | Mantissa & Exponent | Returns the mantissa of x. |
int(x) | Round To Nearest | Rounds x to the nearest integer. |
intrz(x) | — | Rounds x to the nearest integer between x and zero. |
ln(x) | Natural Logarithm | Computes the natural logarithm of x (to the base of e). |
lnp1(x) | Natural Logarithm (Arg +1) | Computes the natural logarithm of (x + 1). |
log(x) | Logarithm Base 10 | Computes the logarithm of x (to the base of 10). |
log2(x) | Logarithm Base 2 | Computes the logarithm of x (to the base of 2). |
max(x,y) | Max & Min | Compares x and y and returns the larger value. |
min(x,y) | Max & Min | Compares x and y and returns the smaller value. |
mod(x,y) | Quotient & Remainder | Computes the remainder of x/y, when the quotient is rounded toward –Infinity. |
pow(x,y) | Power of X | Computes x raised to the y power. |
rand( ) | Random Number (0 – 1) | Produces a floating-point number between 0 and 1 exclusively. |
rem(x,y) | Quotient & Remainder | Computes the remainder of x/y, when the quotient is rounded to the nearest integer. |
si(x) | Sine Integral | Evaluates the sine integral for any real number x. |
sec(x) | Secant | Computes the secant of x, where x is in radians (1/cos(x)). |
sign(x) | Sign | Returns 1 if x is greater than 0, returns 0 if x is equal to 0, and returns –1 if x is less than 0. |
sin(x) | Sine | Computes the sine of x, where x is in radians. |
sinc(x) | Sinc | Computes the sine of x divided by x (sin(x)/x), where x is in radians. |
sinh(x) | Hyperbolic Sine | Computes the hyperbolic sine of x. |
sizeOfDim(ary,di) | — | Returns the size of the dimension di specified for the array ary. |
spike(x) | Spike | Generates the spike function for any real number x. |
sqrt(x) | Square Root | Computes the square root of x. |
step(x) | Step | Generates the step function for any real number x. |
tan(x) | Tangent | Computes the tangent of x, where x is in radians. |
tanh(x) | Hyperbolic Tangent | Computes the hyperbolic tangent of x. |
