長期以來使用Labview來開發軟體,NI的DAQ card來做為硬體,
雖然使用起來很方便,可是總會覺得產品被侷限在一家公司,
另外,在低價位的NIUSB 6008及6009出來之前,
不論是PCI, PXI或PCMCIA系列的NI DAQ card,一張總是要上萬元,

我在網路上查到一家Labjack公司的USB DAQ產品,算是低價位的,
在驅動程式方面支援許多開發軟體,如VB,VC++,Delphi, Borland C builder等,
當然,也支援Labview, LabWindows/CVI,

不過很可惜的是,到目前為止,我也還沒有機會使用它,

所以就只是當是個網路搜尋的資料, 寫下來做備忘錄吧!

LabJack U12

$129 (quantity 1-9)  算是不錯的價位了,不過不知道運送到台灣要增加多少錢?

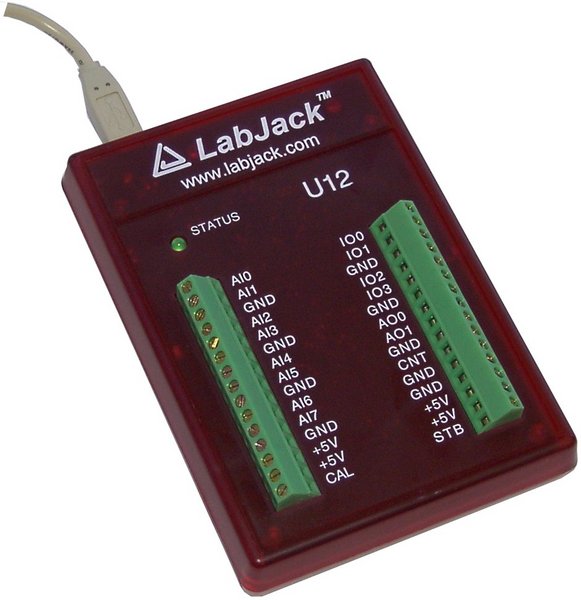

產品圖


規格
  • 8 Single-Ended, 4 Differential 12-Bit Analog Inputs
  • ±10 Volt Analog Input Range
  • PGA with Gains of 1, 2, 4, 5, 8, 10, 16, or 20 V/V
  • Up to 8 kSamples/Sec (Burst) or 1.2 kSamples/Second (Stream)
  • Supports Software or Hardware Timed Acquisition
  • 2 Analog Outputs
  • 20 Digital I/O (Up to 50 Hz per I/O)
  • 32-Bit Counter
  • Watchdog Timer Function
  • USB 2.0/1.1 Low Speed Interface (Data Rate Information)
  • Connect Up to 80 LabJacks to One USB Host
  • Complete Software Control, No Jumpers or Switches
  • No Power Supply Needed
  • Includes Licensed Copy of DAQFactory Express Software (Win2000/XP)
  • Includes Sample Applications and Drivers
  • Includes LabVIEW VIs
  • Works with Windows 98SE, ME, 2000, or XP
  • Includes Cable and Screwdriver
  • Money Back Guarantee
  • Approximately 4" x 6" x 1"
  • Rated for Industrial Temperature Range
  • OEM Board-Only Versions Available
  • Complete specifications in Appendix A of User's Guide
