本篇試者將資料寫入SD card中，

SD card接線設定與上一篇File的相同，

加入用dataFile.println()函數將資料寫入，

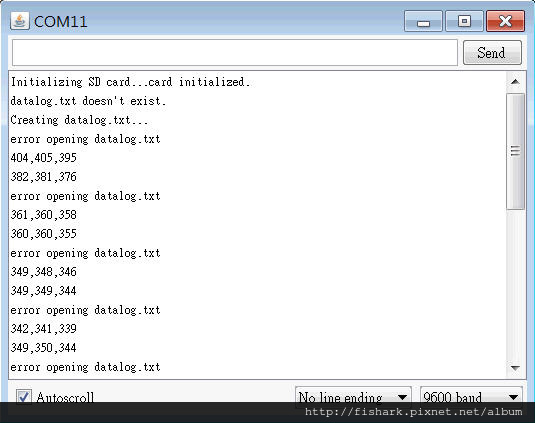

不過一開始寫不進去的機會很高，因此我加了一個delay(1000)，如code中紅色標示，

有增加一些寫入成功的機會，至於失敗的原因還要再研究，

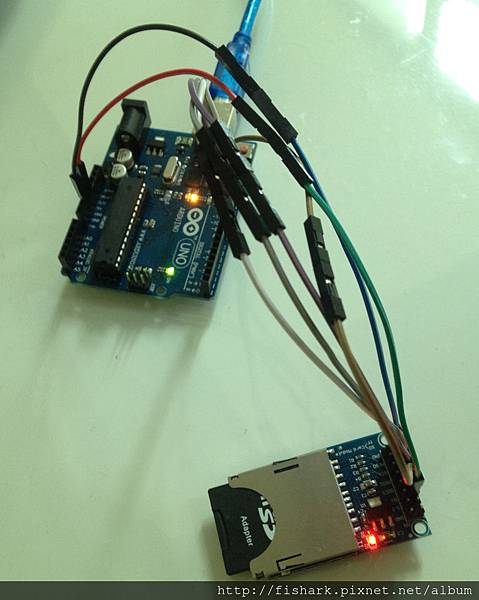

是否是因為我是用接線的方式，或接線太長而影響SPI的傳輸，

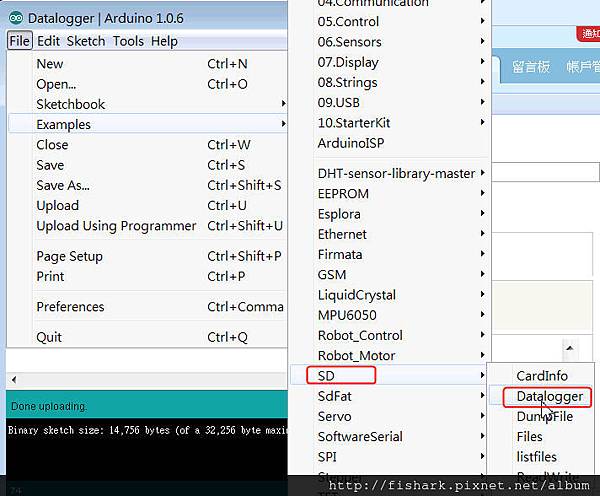

首先，打開SD-->Datalogger，

SD datalogger.ino的code如下：

/*
SD card datalogger

This example shows how to log data from three analog sensors
to an SD card using the SD library.

The circuit:
* analog sensors on analog ins 0, 1, and 2
* SD card attached to SPI bus as follows:
** MOSI - pin 11
** MISO - pin 12
** CLK - pin 13
** CS - pin 4

created 24 Nov 2010
modified 9 Apr 2012
by Tom Igoe

This example code is in the public domain.

*/

#include <SD.h>

// On the Ethernet Shield, CS is pin 4. Note that even if it's not
// used as the CS pin, the hardware CS pin (10 on most Arduino boards,
// 53 on the Mega) must be left as an output or the SD library
// functions will not work.
const int chipSelect = 10;

void setup()
{
// Open serial communications and wait for port to open:
Serial.begin(9600);
   while (!Serial) {
    ; // wait for serial port to connect. Needed for Leonardo only
}

Serial.print("Initializing SD card...");
// make sure that the default chip select pin is set to
// output, even if you don't use it:
pinMode(10, OUTPUT);

// see if the card is present and can be initialized:
if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // don't do anything more:
    return;
}
Serial.println("card initialized.");

// open the file. note that only one file can be open at a time,
// so you have to close this one before opening another.
if (SD.exists("datalog.txt")) {
    Serial.println("datalog.txt exists.");
}
else {
    Serial.println("datalog.txt doesn't exist.");
}

// open a new file and immediately close it:
Serial.println("Creating datalog.txt...");

File dataFile = SD.open("datalog.txt", FILE_WRITE);
}

void loop()
{
// make a string for assembling the data to log:
String dataString = "";

// read three sensors and append to the string:
for (int analogPin = 0; analogPin < 3; analogPin++) {
    int sensor = analogRead(analogPin);
    dataString += String(sensor);
    if (analogPin < 2) {
      dataString += ",";
    }
}

File dataFile = SD.open("datalog.txt", FILE_WRITE);
// if the file is available, write to it:
if (dataFile) {
    dataFile.println(dataString);
    dataFile.close();
    // print to the serial port too:
    Serial.println(dataString);
    delay(1000); -->降低出錯率
}
// if the file isn't open, pop up an error:
else {
    Serial.println("error opening datalog.txt");
}
}
